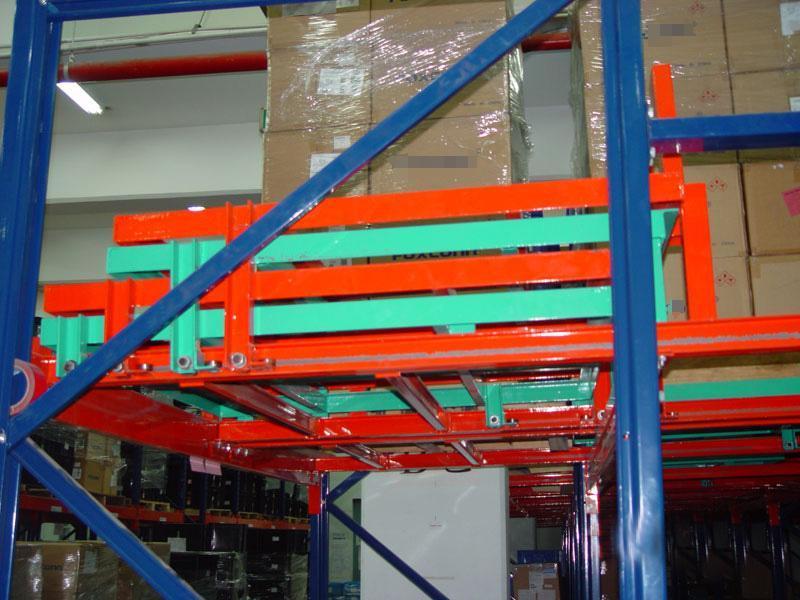

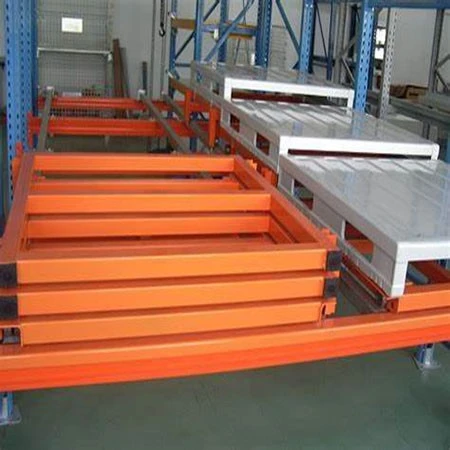

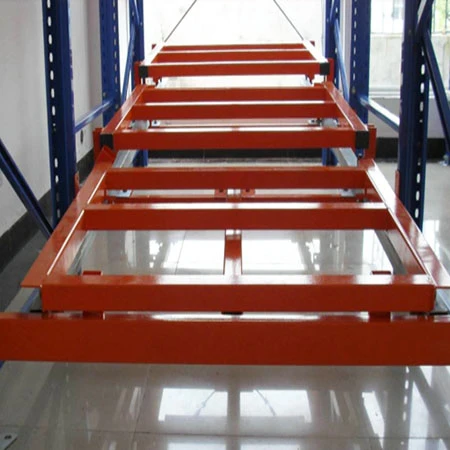

Push Back Storage Racks

Push back storage rack is a common type of warehouse racking that is particularly suitable for storing fewer varieties and larger quantities of items. It works by utilizing the self-weight of the goods to access them on an inclined track. Each tier of trolleys is able to automatically slide down when the goods are not stored, stacked at the forefront of each cargo space. This type of push back storage is a semi-automated racking system with high space utilization and access efficiency.

The parameter specifications of the racking usually need to be decided according to the specific needs of the warehouse, the characteristics of the stored items and the operational procedures.

Push back storage rack is an efficient warehouse storage system. It is designed to allow goods to be pushed in at one end and taken out at the other, following the First In, Last Out (FILO) principle. This type of push back storage has the following characteristics:

(1) High storage density: the design of push back storage allows multiple units of goods to be pushed in continuously on the racking, thus increasing the storage density of the warehouse;

(2) Cost savings: by reducing aisle width and increasing the amount of goods stored, it helps to reduce the cost of rent and operating costs of the warehouse;

(3) Reduce cargo loss: Due to the structural characteristics of the push back storage, the goods are subjected to less impact and friction during the storage and pickup process, which reduces the cargo loss rate;

(4) Flexibility: It is suitable for various types and sizes of goods, and can be used to meet different storage needs by adjusting the height and width of the racking, while adapting to a variety of operational modes, such as forklift access, manual access, and so on.

Push back storage rack is especially suitable for occasions with limited storage space and low requirements for goods picking, such as freezers, food warehouses, etc.It is usually used to store few varieties, large quantities of goods, not suitable for storing too heavy items, and can not realize the first-in-first-out (FIFO) access mode.

(1) The material of columns and beams is usually steel because steel has high strength and durability.

(2) The diagonal braces are used to enhance the lateral stability of the push back storage racks and prevent the racks from tilting due to lateral forces.

(3) Rollers are installed on each bay, allowing the pallets to move smoothly on the rails.

(4) The rails are designed to ensure smooth movement of the pallets while preventing the pallets from deviating from the rails.

Founded in 2015 and headquartered in Guangzhou, Guangzhou JustBest Logistics Equipment Co., Ltd. is a company specializing in the research, development, production and sales of logistics equipment such as shelves, metal logistics containers and workstation apparatus. At present, our Zhongshan factory has more than 40,000 square meters of modern plant, with more than 190 sets of professional machines and equipment, and a strong team of more than 500 people, including professional and technical engineers, with an average annual output value of 400 million RMB. We have reached pleasant cooperation with famous enterprises such as SF Group, Best Express, Hitachi Elevator, Mitsubishi Electric, Agricultural Bank of China and so on. We always adhere to the "enterprising, innovation, integrity and gratitude", and are committed to building a high-efficiency, low-cost, high-space rate of the logistics storage system, for you to win more space for development.

(1) Delivery time: 12 working days for standard products and 15 working days for customized products;

(2) Transportation: Sea or air transportation can be chosen depending on the actual situation. Usually we ship in containers;

(3) Service: If you have any product problems, please feel free to contact us, we will confirm the solution and send technical engineers to the site within 48 hours. We promise free warranty within one year of the product sold (except for the damage caused by man-made and force majeure factors), we need to charge a certain material cost for more than one year warranty period.

(1) Do you have the test and audit service?

Yes, we can assist to get the designated test report for product and the designated factory audit report.

(2) What is your term of payment?

40% down payment before producing and 60% balance payment before shipping.

(3) What's is your shipping service?

We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

We supplied press-in shelving to a big wholesale business in Shanghai, China in 2020. The project had 1,800 storage spaces and covered an area of 1,000 square meters. The customer, which mainly deals with the wholesale of hardware products, chose this racking system to make access operations easier because of an increase in order volumes. This case shows how press-in rear racking is great for storing lots of different things, like light industrial products. It's really easy to use and makes the most of the space.
