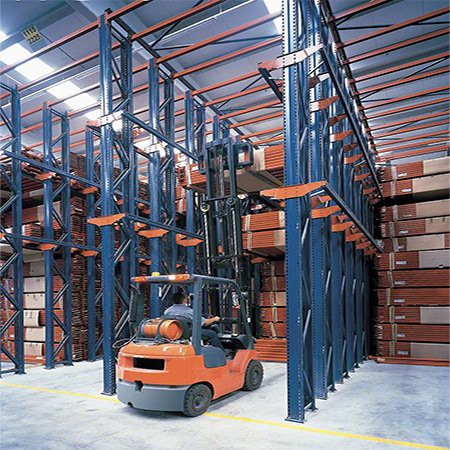

Drive through pallet racking system is designed for mass storage of the same kind of goods (pallets). On the support rails, forklift trucks (or unmanned vehicles with forks) drive into the aisles to access the goods, and the goods on the pallets are stored one after another according to the direction of the depth, which makes high-density storage possible.
Product Parameters (Specifications)
|
Shelf Types |
Pallet Racking |
|
|
Size Specification |
Length |
2400/2500/2700/3000/3300/3600/3900mm |
|
Width |
900/1000/1100/1200mm |
|
|
Height |
2000~10000mm(Can Be Customized) |
|
|
Thickness |
column: 1.5mm,2.0mm |
|
|
Layer |
2-6 adjustable layers (can Be customized) |
|
|
Material |
Shelf Material |
Cold rolled steel sheet,stainless steel |
|
Surface |
Electrostatic environmental protection spraying |
|
|
Loading Capacity(KG) |
1000-5000 kg (2204-11023lbs) per layer |
|
|
Color |
Column blue, beam orange, other colors can be customized |
|
|
Accessories |
Arms, columns, beams, connectors, etc. |
|
|
Structure |
Fixed, detachable, cantilevered |
|
|
Installation |
Floor mounted, suspended, wall mounted |
|
|
Feature |
Anti-tipping, anti-slip, fire and corrosion resistant |
|
|
Usage Environment |
Indoor, Outdoor, Ambient, Cold |
|
|
Applicable Scenes |
Warehouse, supermarket, factory |
|
|
Guarantee Period |
One Year Warranty |
|
|
Can you customize |
Support non-standard customization |
|
The above parameters or specification are usually customized by will according to the specific needs of the customer and the actual situation of the warehouse to ensure that the system meets the specific requirements of the customer.
Drive through pallet racking system configuration for two groups of drive through racking back-to-back installation or a single group against the wall, forklift in and out of the use of the same aisle, usually suitable for cyclical batch operation and access to materials with high frequency of raw materials warehouse or transshipment warehouse.
01
High Storage Density
The goods storage channel is also a forklift storage and transportation channel, which saves ground space.
02
Less Demand For Picking
It is usually used for goods of small variety but of large quantities, and the picking requirements for the goods are low.
03
Penultimate Basis
Goods are usually stored and transported on a penultimate basis, as is the case for most handling machinery.
04
Good economic returns
Ordinary forklift truck+3 layers shelves=more than 100% increase in the effective storage capacity of the warehouse.
Drive through racking system

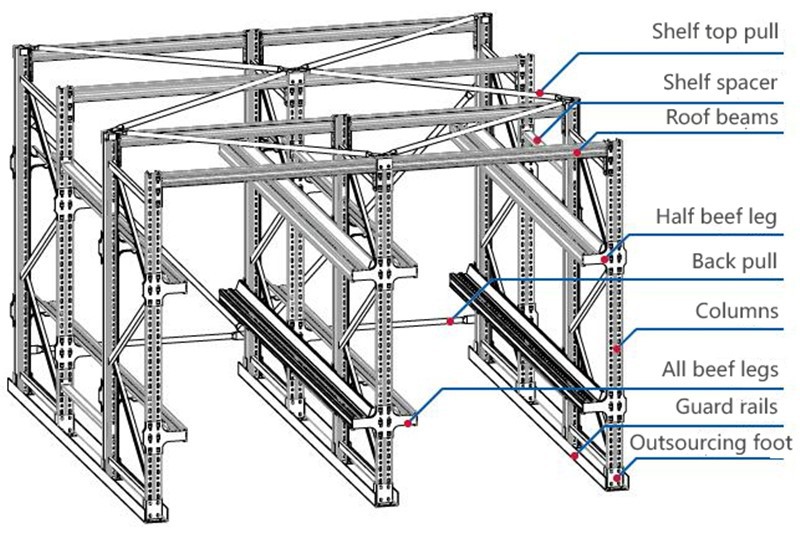

Drive through racking system design is a kind of integral racking which is not divided by aisle and continuity, which is mainly composed of column piece, bull leg, bull leg partition, top beam, top pull, back pull and other parts. Racking adopts pallet access mode, on the support rails, pallets are stored in depth direction.
Product qualification

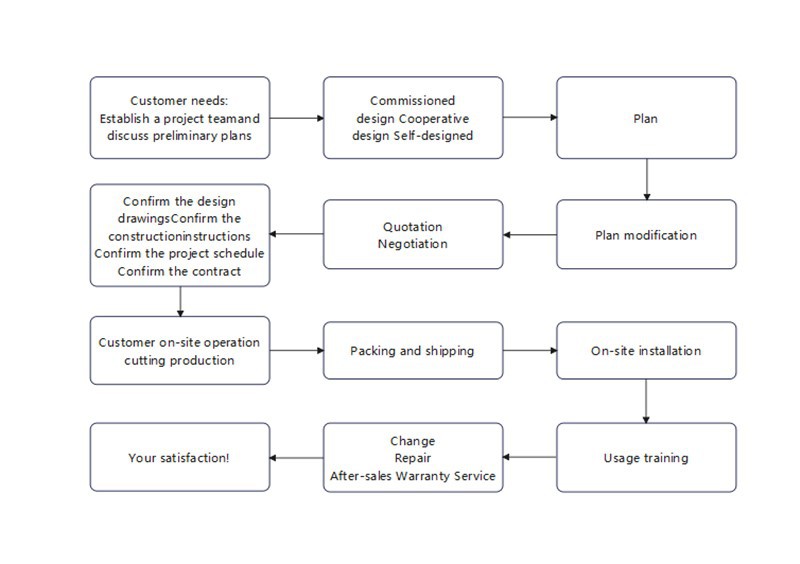

Established in 2015, Guangzhou JustBest Logistics Equipment Co., Ltd. is a company specializing in the research, development, production and sales of shelves, metal logistics containers and workstation appliances. After years of independent development and continuous improvement under the products have passed the ISO9001 international certification, shelves mostly take high quality cold rolled steel as the raw material for production, the main production equipment are vertical roll forming machine, shelf self-locking beam roll forming machine. In addition, the production process of shelves as shown in the diagram below of the warranty period, we will discuss material costs after mutual agreement.
Deliver, shipping and serving
(1) Delivery: The standard delivery time for our products is 12 working days, while customized products require 15 working days.
(2) Transportation and Service: Our products are transported by sea and air, and container transportation is our preferred method. If there is any problem with the products, please feel free to contact us. We will respond within 48 hours and send a person Except for human damage or damage caused by force majeure factors, all products sold have a one-year warranty. If the warranty period is expired, material replacement cost will be charged.
FAQ
(1) Can we use our own logo?
Yes, we can print your private logo according to your request.
(2) Do you have the test and audit service?
Yes, we can assist to get the designated test report for product and the designated factory audit report.
(3) How can i get more details about drive through racking system?
Please continue to browse our product pages or contact our customer service directly via instant messaging for an in-depth presentation.
Projects

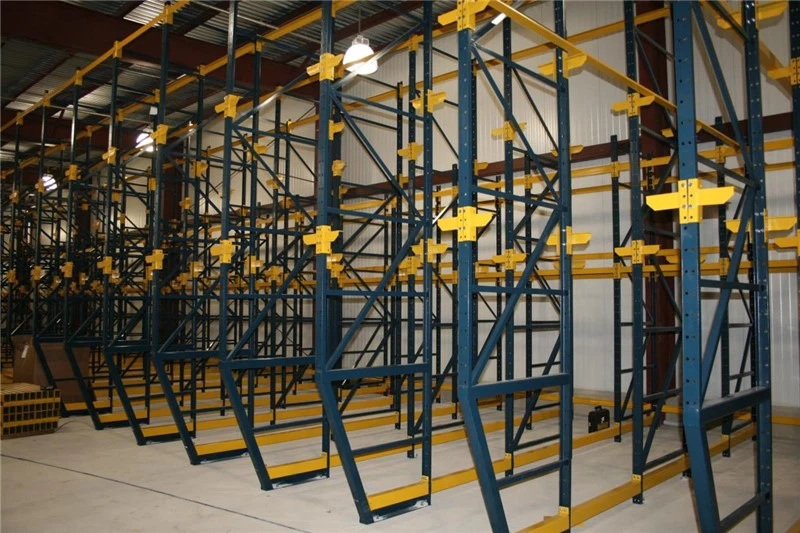

In 2016, we had the honor of designing a drive-through pallet racking system for a toy company in Shantou, Guangdong Province, Mainland China. Drive-in racking has a relatively simple structure and low material and construction costs, which may be suitable for toy factories with limited budgets. Faced with a variety of different sizes and shapes of toy products, drive-in racking can be adapted to store different types of toys. Drive-in racks can be divided into zones according to production date, product type, etc., which helps factories to manage inventory and stock-taking more effectively. Please allow me to show you the project design drawings.
